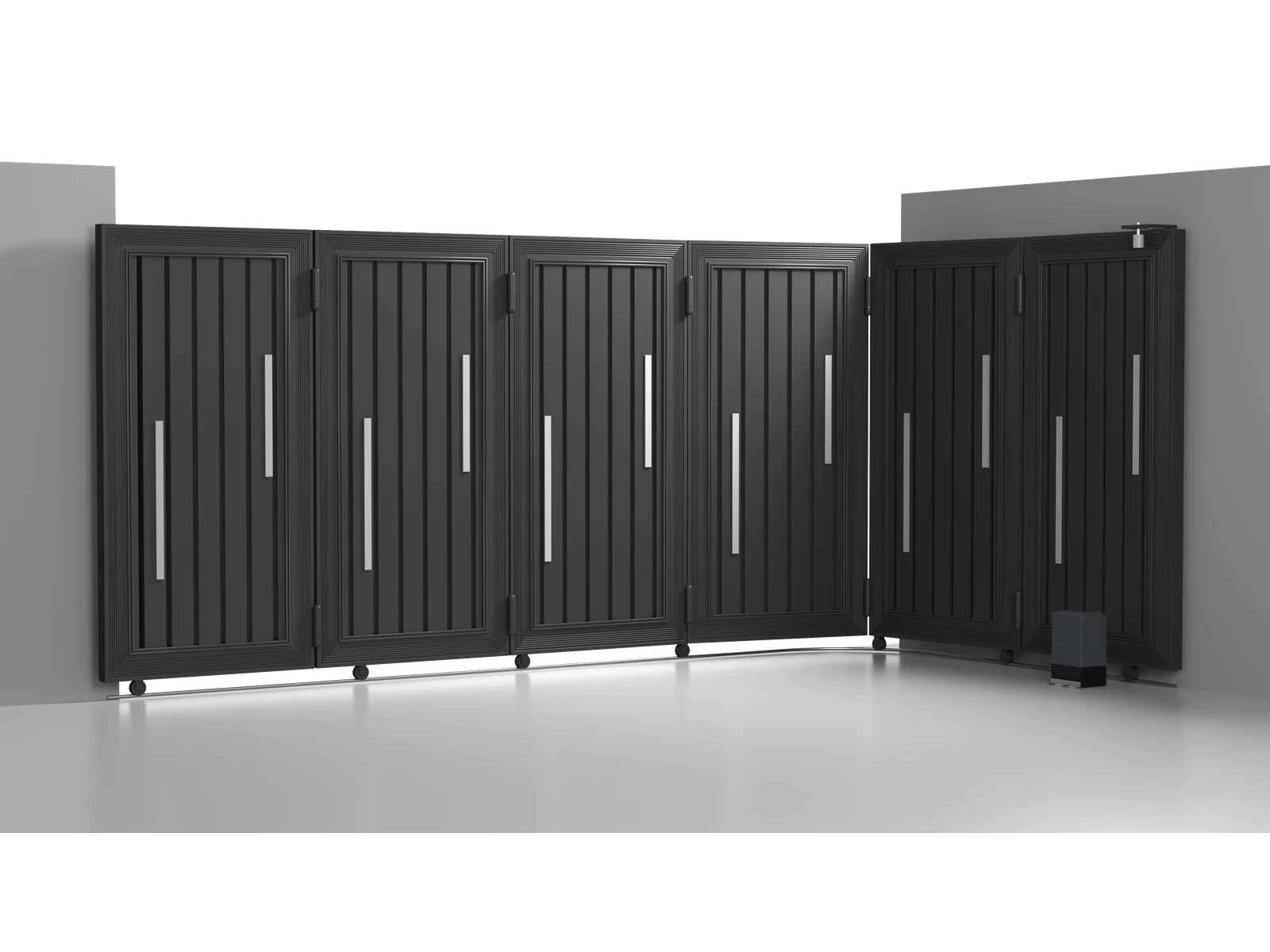

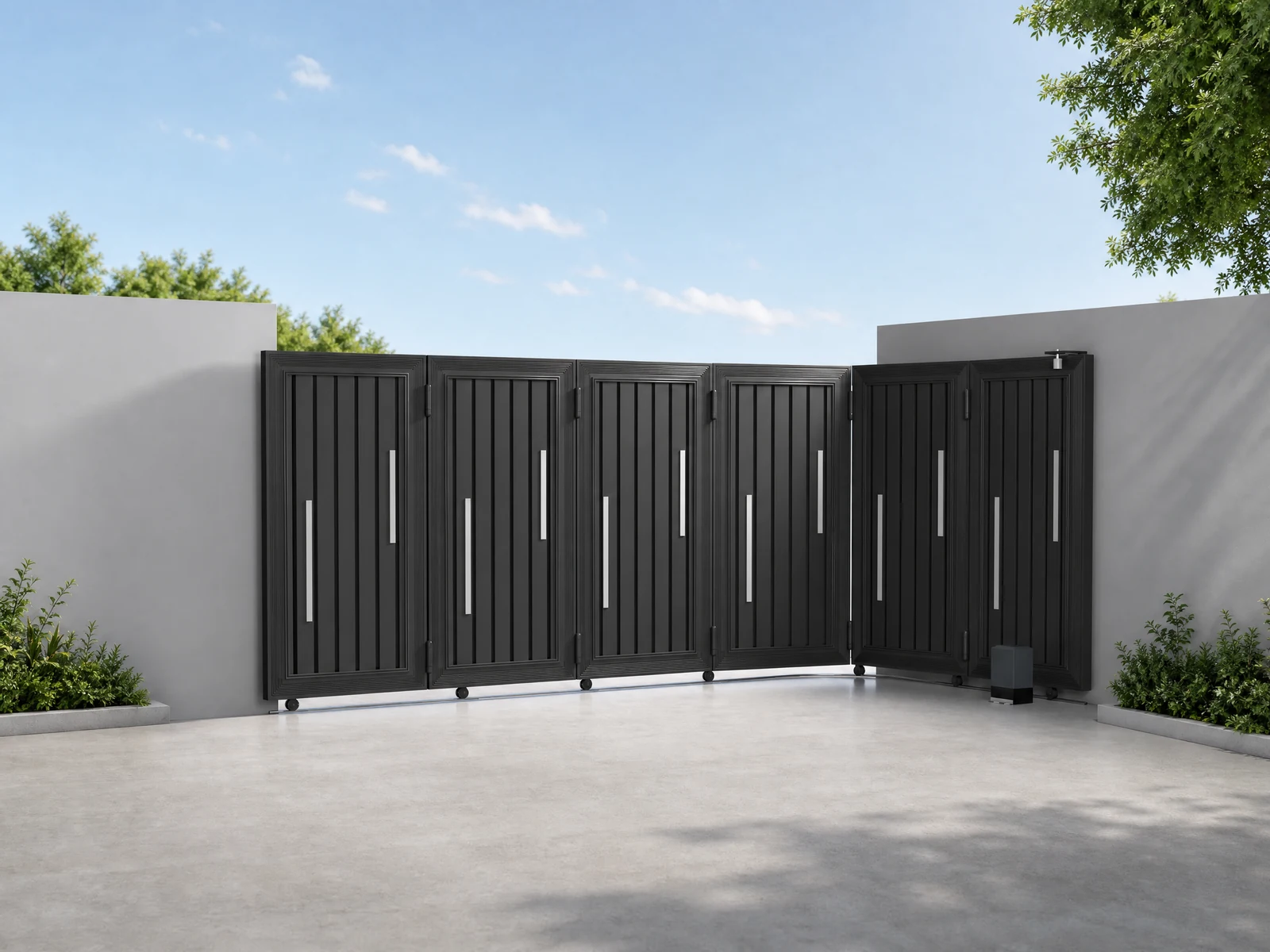

Curved Track Turning Sliding Gate with Vertical Grille Panels

This custom curved track turning sliding gate is a specialized entrance solution engineered for angled driveways, corner lot properties and villa courtyards where conventional straight sliding gates simply cannot be installed due to limited lateral space. Unlike standard sliding gates that require a long straight run-back wall, this gate travels along a precision-engineered curved bottom track and navigates corners smoothly, stacking neatly against the side wall. This unique turning design delivers full driveway clearance while using only a fraction of the side space required by traditional sliding gates.

The gate consists of multiple vertical grille panels connected by heavy-duty hinges, forming an articulated linkage system that flexes smoothly as it follows the curved path. Each panel features dense vertical slats that provide high privacy and security while maintaining a clean, modern linear appearance. Constructed from high-grade aluminum alloy, the gate offers excellent structural rigidity with significantly less weight than steel equivalents, reducing stress on the track, rollers and drive mechanism. Every vertical slat, frame section and hinge component is precision cut, formed and assembled to ensure tight tolerances, smooth articulation and consistent alignment throughout the curved travel path. All components undergo welding, grinding and polishing before receiving a durable outdoor powder coating, resulting in a smooth matte charcoal black finish that resists fading, rain, humidity and corrosion.

Operation is guided by a heavy-duty curved bottom track and supported by universal load-bearing rollers mounted under each panel. The multi-panel linkage allows the gate to fold sequentially and glide smoothly along the curve, opening and closing quietly and reliably. When fitted with the optional external automatic gate operator, the system can be controlled via remote control, and can also be integrated with safety photocell sensors, access keypads, intercoms and smart home access systems for enhanced security and daily convenience.

Beyond its functional space-saving advantages, the tall vertical grille profile creates a strong architectural presence and a consistent modern facade around the entrance of the property. We offer full customization including overall opening width, gate height, vertical slat spacing, number of panels, track curve radius, finish color and hardware options. Each gate is factory tested for structural integrity, smooth corner travel and surface finish before being crated for international shipping. Whether for a modern villa with a courtyard, a corner lot residence or a property with an angled driveway layout, this charcoal black curved track turning sliding gate combines space-saving engineering, durable aluminum construction and minimalist contemporary design.
